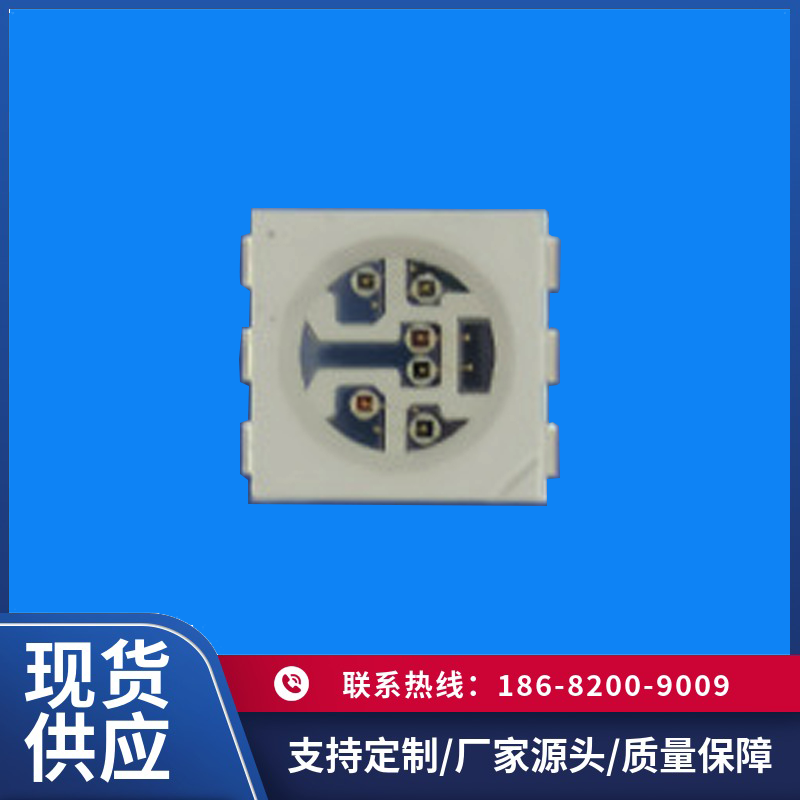

脑氧肌氧传感器芯片
产品参数：
Name | Model | RED | RED | IR | IR | IR | IR | Package |
Multi Emitters | HL5050-6P071W | 660 | 690 | 730 | 810 | 880 | 895 | 6Pin, COB |
■Absolute Maximum Ratings (Ta= 25℃)
Parameter | Symbol | Max. | Unit | Note |
Power Dissipation | Pd | 60 | mW | --- |
Forward Current | IF | 20 | mA | --- |
Peak Forward Current | IFP | 100 | mA | 1/10 Duty cycle,0.1ms pulse width |
Reverse Voltage | VR | 5 | V | --- |
Operating Temperature | T0pr | -25～+85 | ℃ | --- |
Storage Temperature | TStg | -40～+100 | ℃ | --- |
Soldering Temperature | TS01 | 260 | ℃ | 260℃ for 3 Seconds |
■Electrical/Optical Characteristics (Ta= 25℃)
Parameter | Symbol | Min. | Typ. | Max. | Units | Test Conditions | ||||||
660 | 690 | 730 | 660 | 690 | 730 | 660 | 690 | 730 | ||||
Forward Voltage | VF | 1.8 | 1.8 | 1.5 | 1.9 | 1.9 | 1.70 | 2.4 | 2.4 | -- | V | IF=20mA |
Reverse Current | IR | - | -- | -- | -- | -- | -- | 10 | 10 | 10 | uA | VR=5V |
Radiant Power | Po | 8 | -- | -- | 11 | 12 | 9 | 13 | 15 | 11 | mW | IF=20mA |
Peak Wavelength | λp | -- | -- | -- | 663 | 690 | 730 | -- | -- | -- | nm | IF=20mA |
Spectral Line Half-width | Δλ | -- | -- | -- | 70 | 50 | 30 | -- | -- | -- | nm | IF=20mA |
Parameter | Symbol | Min. | Typ. | Max. | Units | Test Conditions | ||||||
810 | 880 | 895 | 810 | 880 | 895 | 810 | 880 | 895 | ||||
Forward Voltage | VF | -- | -- | -- | 1.55 | 1.39 | 1.35 | -- | -- | -- | V | IF=20mA |
Reverse Current | IR | -- | -- | -- | -- | -- | -- | 10 | 10 | 10 | uA | VR=5V |
Radiant Power | Po | 7 | 5 | 1.5 | 10 | 7 | 2.5 | 12 | 10 | 4 | mW | IF=20mA |
Peak Wavelength | λp | -- | -- | -- | 810 | 880 | 895 | -- | -- | -- | nm | IF=20mA |
Spectral Line Half-width | Δλ | -- |
|
| 40 | 40 | 75 | -- |
|
| nm | IF=20mA |
